ATOM Analyzer features powerful noise and vibration data acquisition capabilities, coupled with a unique and professional process-oriented test setup interface. It supports multi-channel data collection, real-time data monitoring and analysis, and enables project-based management of test data. While performing daily NVH acquisition and analysis, it facilitates data accumulation and administration, standardizing test procedures, improving test efficiency, streamlining test data communication, significantly enhancing users’ utilization efficiency of NVH test equipment, and accelerating product development.

ATOM NVH is a new-generation foundational platform for NVH data viewing, analysis and management. It integrates functions including noise & vibration data viewing, analysis, playback, data administration and report generation.

AaSQ, the Advanced Voice Quality Test and Analysis System, is a test solution independently developed by our company with 100% independent intellectual property rights, which can fully replace imported instruments.

SRbots, the Voice Recognition Test System, is a test solution independently developed by our company with 100% independent intellectual property rights, which can fully replace imported instruments.

Quantus Series is a compact, highly integrated test system that enables high-precision data acquisition and output of both analog and digital signals.

An integrated solution designed for a wider measurement range.

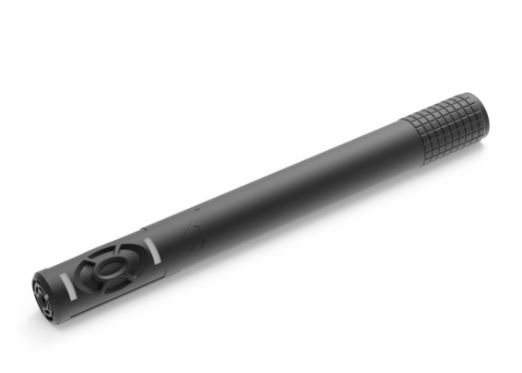

Acoustic intensity measurement is an efficient tool for sound source localization, sound source contribution ranking and radiated sound power determination. This method is based on simultaneously measuring sound pressure and particle velocity using two closely spaced microphones. To minimize interference with the sound field, the acoustic spacing between the two microphones of the acoustic intensity probe must be defined. For measurement accuracy, an appropriate microphone spacing shall be set according to specific test conditions. A larger spacing is required for low-frequency measurement under strong reverberation, while a smaller spacing is adopted for high-frequency testing. The PU probe (or PP probe) is applied for coherent acoustic intensity testing and analysis.

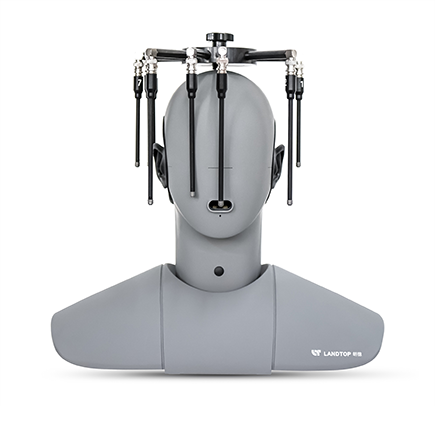

The 8-channel LANDTOP Microphone Surround Array - LMSA I is developed in compliance with ETSI TS 103224 standard. Its microphones fully meet the standard requirements in terms of phase response, frequency response and level value, enabling perfect noise equalization for asymmetric scenarios specified in ETSI TS 103224.

The LHT (Landtop Head Torso) artificial head testing system is applicable to electro-acoustic performance tests of various voice interaction terminals including mobile phones, headsets, smart speakers, in-vehicle voice systems, smart screens and hearing aids under handheld, headset, handheld hands-free and hands-free modes.

The artificial ears of LHTI.1 LN (Landtop Head Torso) artificial head testing system are fitted with high-sensitivity ear simulators, featuring ultra-low background noise down to 16 dB SPL(A) and a maximum sound pressure level up to 149 dB SPL. Its artificial mouth can reproduce full-spectrum sound ranging from 50Hz to 20kHz with extremely low distortion. It serves as the optimal solution for electro-acoustic performance testing of various voice interaction terminals including mobile phones, headsets, smart speakers, in-vehicle voice systems, smart screens and hearing aids under handheld, earphone, handheld hands-free and hands-free working modes.

3DEQ-Lab (3 Dimensions Equalization) is an advanced recording and playback system that can faithfully simulate and reproduce background noise in various scenarios. It is specially designed to evaluate complex noise suppression algorithms widely adopted by noise reduction systems of smartphones. Fully compliant with ETSI TS 103 224 standard, the system is embedded with a complete background noise database in line with relevant specifications.

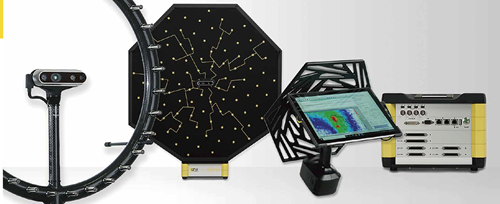

Equipped with beamforming technology, the ACOUSTIC Camera system generates fast and accurate noise distribution maps. It captures noise visualizations for steady-state, unsteady, stationary and moving objects, and has been widely applied in numerous fields including pass-by noise measurement, in-vehicle 3D noise distribution analysis and component noise mapping.

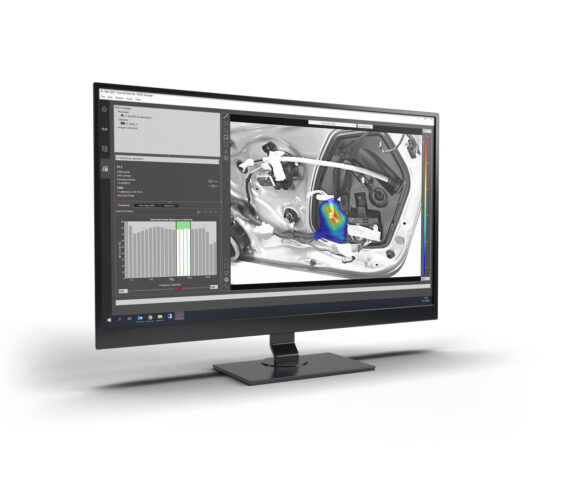

Sound source localization is a critical research topic in noise and vibration, covering the full lifecycle from product development to production line quality control. The Microflown scanning imaging system is an efficient tool for visualizing steady sound fields across a wide frequency spectrum. As a professional engineering instrument, it supports troubleshooting and benchmark testing for nearly all types of test objects.
